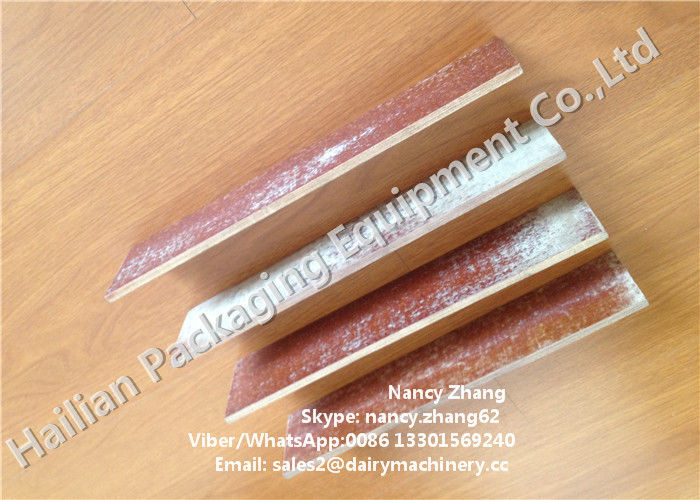

2100 Liter Milking Vacuum Pump Oil Sealed Vacuum Pump Fiber Vane

Product Details:

Place of Origin:	China Mainland
Brand Name:	HL
Certification:	ISO
Model Number:	HL-V01

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden Crate
Delivery Time:	5 - 7 days
Payment Terms:	T/T, Western Union,Pypal
Supply Ability:	500 sets / month

Contact Now

Detailed Product Description

Item:	Oil Sealed Vacuum Pump Fiber Vane	Model:	HL-V01
Length:	28cm	Width:	6cm
Thickness:	6mm	Vacuum Pump:	2100L Vacuum Pump
High Light:	surge milker vacuum pump , milking machine vacuum pumps

2100 Liter Milking Vacuum Pump Oil Sealed Vacuum Pump Fiber Vane

Quick Details:
Name: vacuum pump fiber vane , milking vacuum pump replacement

Size: 280x60x6mm

Material: fiber

Range: apply to 2100L vacuum pump

Vacuum Pump Information:
- Model: HL-V2100
- Capacity: 2100L
- Material: cast iron
- Vacuum pump degree: 50Kpa with adjustable
- Motor: 5.5kw
- Range: used for milking machine and milking parlor system

Specification:

Capacity (L/min)	250	300	550	850	1500	2100
Pump Speed (r/min)	1440	1440	1440	1440	1440	1440
Vacuum Degree(Kpa)	50	50	50	50	50	50
Noise (Db(A))	≤50	≤50	≤60	≤70	≤70	≤70
Ultimate Vacuum(Mp)	≤90	≤90	≤90	≤90	≤90	≤90
Motor Power(kw)	1.1	1.1	2.2	3	4	5.5
Weight(kg)	13.5	14	31	36	57.5	69.5
Size(L×W×H) (mm)	230220220	230220220	280270220	300220220	430230230	390290290

Note: The above parameters for reference only!

Features:
- The fiber vane has a higher flexural strength, it is not easy to deformation and bending.
- It has smaller density than iron, so the centrifugal force is small, it will not wear casing wall.
- With high temperature resistance, it is suitable for 350 - 800 °C.
- With high hardness, on the premise of sufficient oil lubrication, the vacuum pump is very abrasion resistant and durable.

Description:
The vacuum pump fiber vane is made of phenolic resin fiber material, named Kevlar. It is the wearing part of vacuum pump, and vacuum pump is the heart of the milking machine. Regular servicing helps preserve the vacuum reserve. Various capacity vacuum pump need different specification vacuum pump pallet. The heavy duty body of the rotary vane vacuum pump is constructed from chemical resistant cast iron, making it durable to any environmental working conditions.
The function of vacuum pump is to extract air from the milking machine system through the belt driven. Thismilking machine vacuum pump gives flexibility with speeds ranging from about 800-1500 r/min and a corresponding angel of pump capacities to suit different sizes of milking machines.

Application:
The vacuum pump fiber vane is one of most important part for the vacuum pump which is the heart of the milking machine. The function of vacuum pump is to extract air from the milking machine system through the belt driven.

Components:
One whole set milk vacuum pump consists of vacuum pump, silencer (stainless steel muffer), oil can (oil pot), belt (pulley) and vacuum pump pallet and some rubber parts.
